Maximum dimension: 8000mm × 9000mm

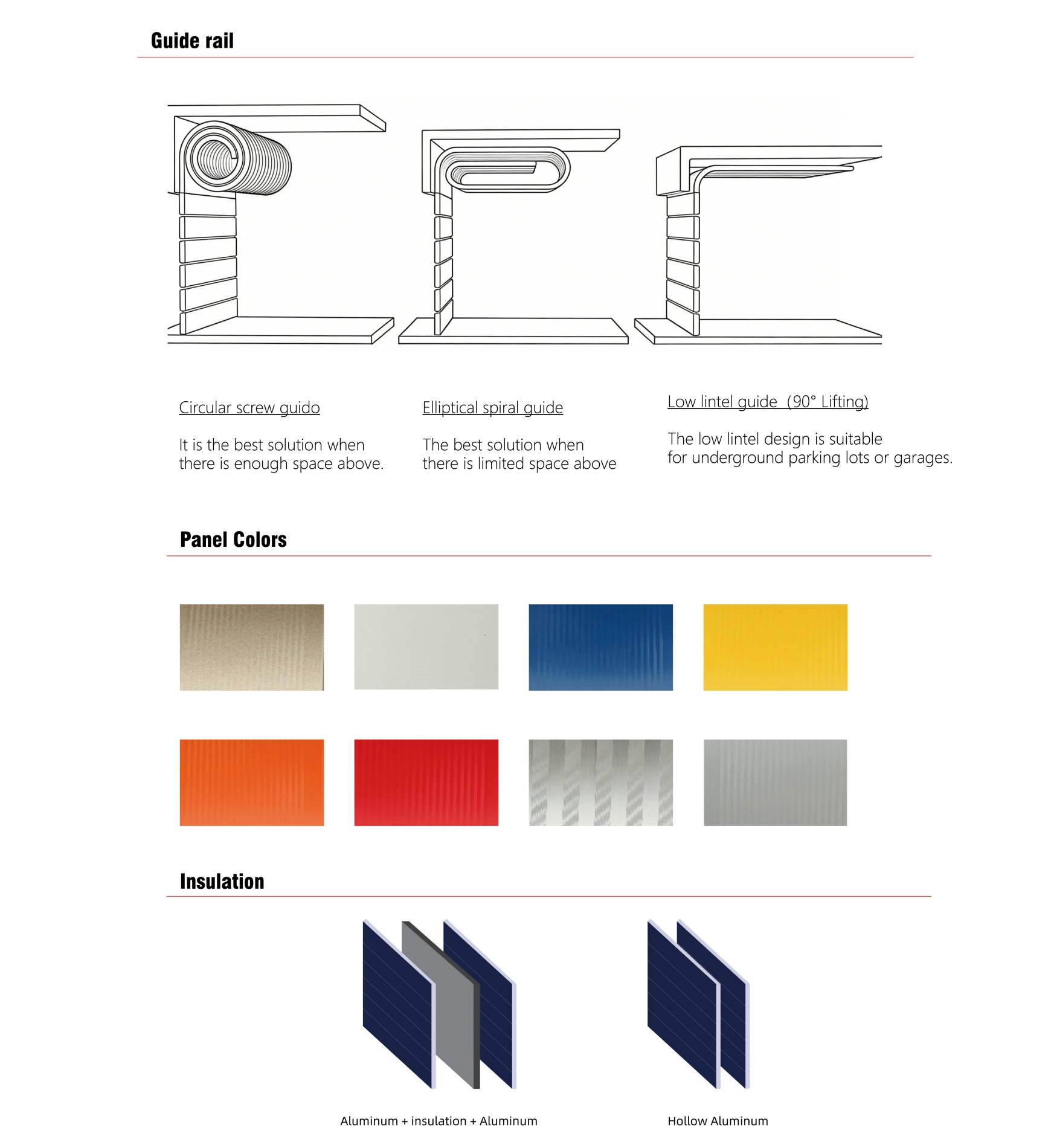

Track: Galvanized steel or Aluminum
Panel size: Height 220mm, Thikness: 40mm(+1mm),
Box: 304 stainless steel
Bottom airbag strip:EPDM
Running speed: 0.8m/s ~ 2m/s (varies with door size), adjustable
Wind resistance: National Standard Grade 3 (relative deflection < L/180 under 0.5kPa wind pressure)
Water tightness: △p ≥ 700Pa, National Standard Grade 6
Air permeability: ≤ 0.62 m³/(㎡·h)
Thermal insulation: K-value ≤ 0.5 W/(㎡·K)

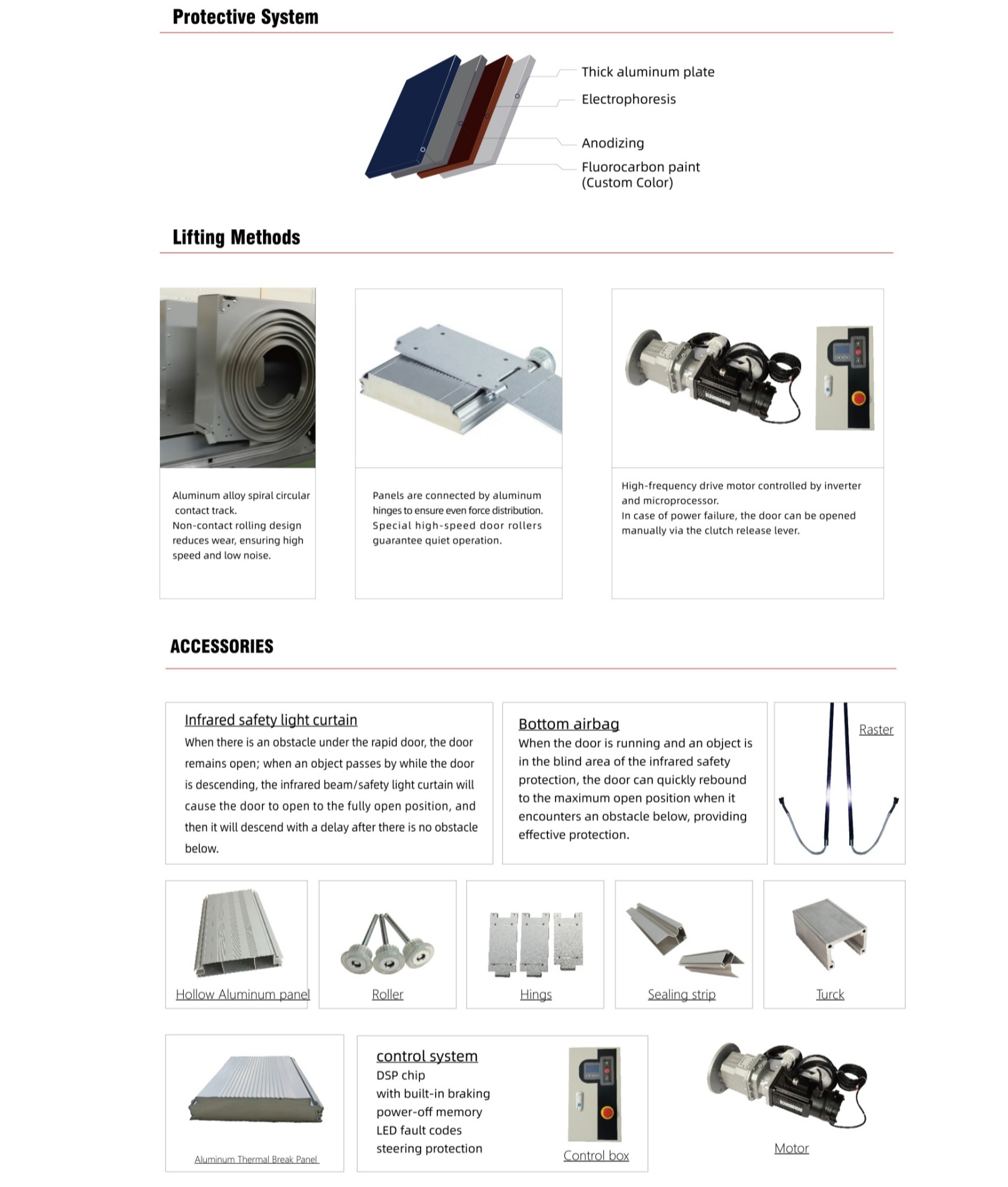

Safety protection: infrared safety light curtain + bottom safety airbag.
Alarm light ,Radar sensor
Motor : servo motor, controller whth english interface

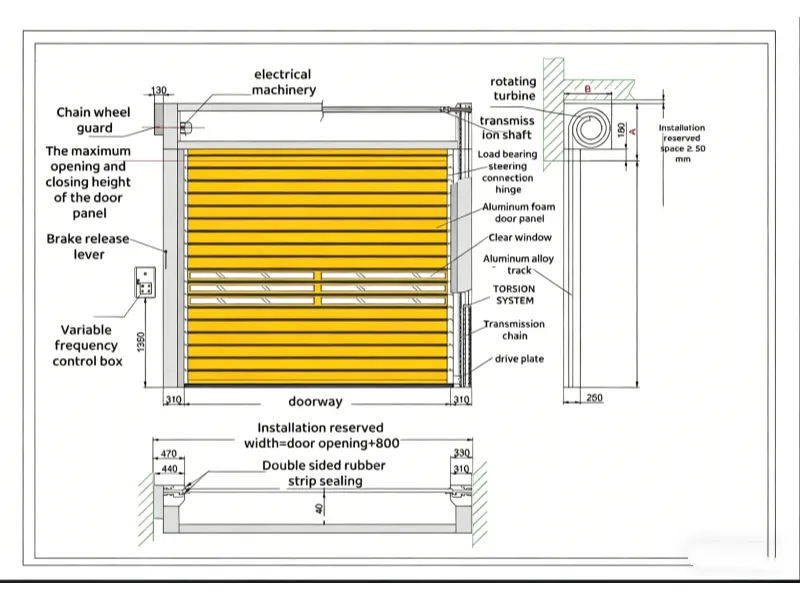

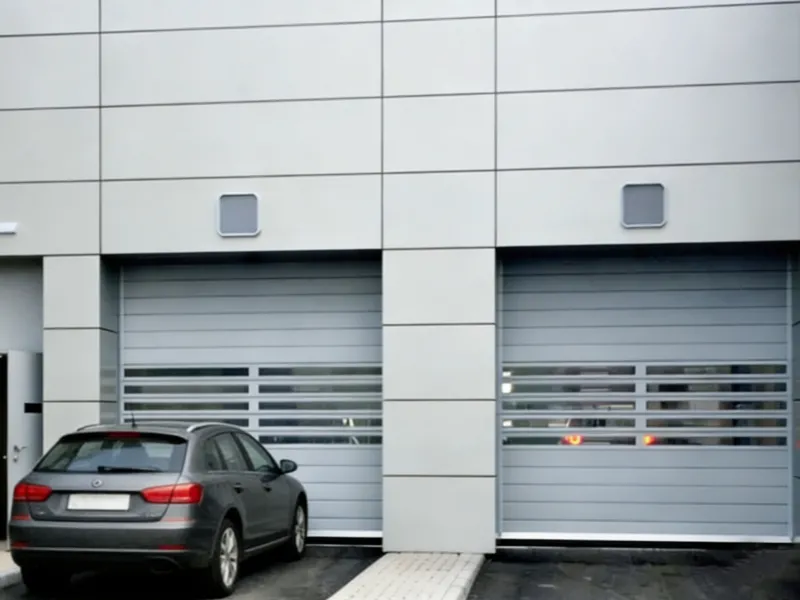

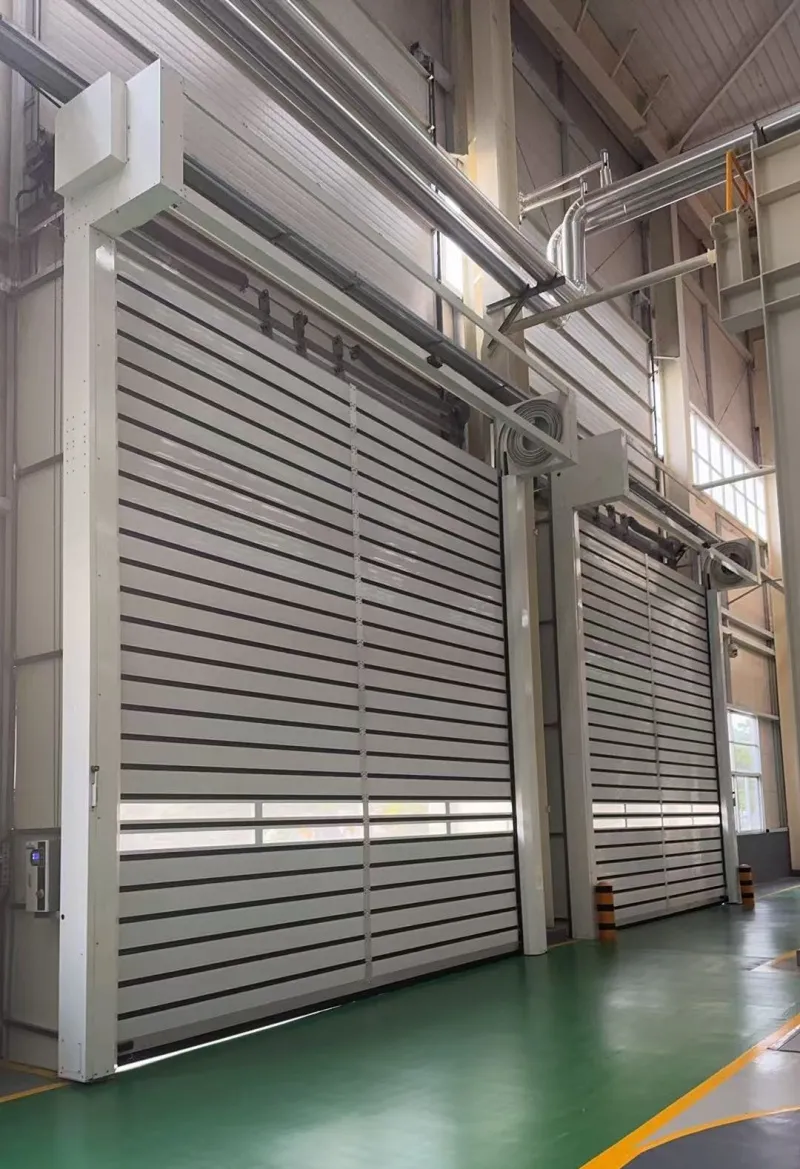

High-speed Turbo Door
|
Model Specifications X401
Color Options
After-sales Service
Note: The complimentary 2-year warranty covers non-human-induced damage and includes online repair services and replacement parts. Replacement parts will be shipped with your second order. |
