Our Service

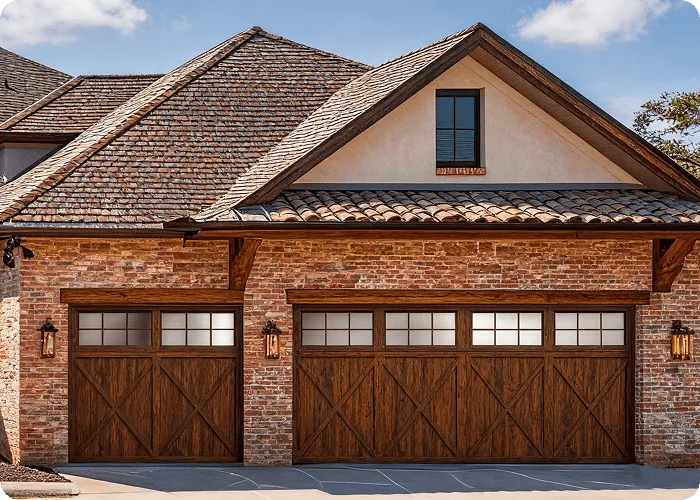

Customized Service
We offer customized and personalized modular garage doors that can be adapted to a variety of application scenarios. The material frame is made of 6063-T5 aluminum alloy (with a wall thickness of 2.0-3.0mm), and the glass is 5+5mm double-layer insulating tempered glass (Low-E coating can be optionally equipped to effectively block ultraviolet rays and heat). The glass colors include black, white, European tea, European gray, Ford blue and art glass, among others, to meet the needs of different styles.We are committed to the integration of luxury and technology, creating personalized aluminum alloy grille panel insulated garage doors that are widely suitable for various scenarios. It supports customization based on the actual door opening size (width 1.8m-8m, height 2.2m-4m) and color preferences (such as classic black, matte gray, gold, coffee stripes, wood grain color and other popular tones), perfectly integrating into various architectural styles such as villas, detached houses and high-end residential communities.

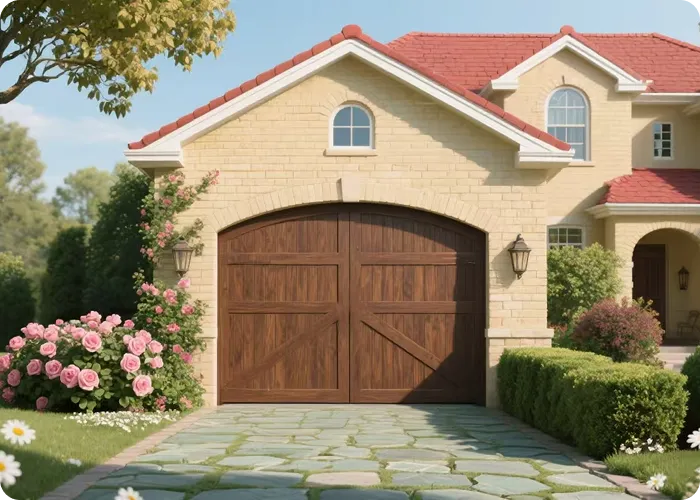

Design Service
We take efficient response and precise delivery as the core, and spare no effort to meet the personalized needs of our customers. During the design phase, relying on a professional design team and a mature technical system, we promise to provide a dedicated garage door effect drawing within 2 hours, covering size matching, style customization and functional optimization. This helps customers preview the plan intuitively, quickly confirm their requirements, and significantly shorten the communication cycle in the early stage.
Installation Guidance
01. Preparation
Confirm that the opening and panel dimensions of the combined garage door are accurate and error-free. Check that the tracks, hinges, springs, motors and other accessories are complete. Prepare installation tools such as electric drills, wrenches and levels. Clean the garage installation area to ensure that the ground is flat and free of obstacles.
02. Install the track
First, fix the vertical tracks on both sides. Use a level to calibrate the verticality and then tighten the screws. Install the horizontal tracks again to ensure smooth connection with the vertical tracks. The entire track should be level and the spacing should meet the size requirements of the door body.
03. Assemble the door body
Assemble the insulated garage door panels in sequence, install hinges and connecting parts, and ensure that the door panels are tightly connected and rotate flexibly. Sealing strips are installed at the bottom of the door panel to enhance the overall sealing performance.
04. Installation of springs and hardware
Select the balance spring according to the weight of the door body, calibrate the verticality, fix the spring bracket, install the main beam shaft and the wire rope wheel, assemble the spring and adjust its tension (operate with caution to prevent spring rebound and cause injury). Install the rollers, steel wire ropes and other hardware components to ensure that the steel wire ropes are wound evenly and run smoothly.
05. Install the motor
Fix the motor at an appropriate position on the top of the garage, adjust the connection between the motor chain and the door body, connect the power supply, test the forward and reverse rotation status of the motor, and set the limit switch simultaneously to prevent the door body from operating beyond the limit.
06. Debugging and inspection
Test the garage door's lifting and lowering operation manually or remotely, observing whether the operation is smooth and without abnormal noise, and checking for track misalignment. Thoroughly check that all screws and connectors are tight, and that the spring tension is appropriate, ensuring that the door's opening, stopping, and locking functions are normal.
Production and Delivery Cycle
By integrating lean production processes with strict quality control standards, we ensure the quality of non-standard customized products while achieving rapid product delivery within 15 to 20 days, significantly shortening the industry's conventional cycle and effectively addressing the pain point of "long customization cycle" for our customers. From raw material selection, production assembly to detailed refinement, the entire process is strictly controlled to ensure that the delivered garage doors not only meet the customized requirements but also have high reliability, truly achieving "no delay in customization and no discount on quality", providing a strong guarantee for the project progress of customers.
After-Sales Service
The door structure comes with a 5-year warranty, and the electrical components (including the motor, remote control, etc.) come with a 2-year warranty. During the warranty period, we will provide free replacement parts for any quality issues.
